HK868plus Edge Bander machine automatic
Product Video
Parameters
| Model | HK868plus |
| Panel length | Min.150mm(corner trimming45x200MM) |
| Panel width | Min.40mm |
| Edge band width | 10-60mm |
| Edge band thickness | 0.4-3mm |
| Feeding speed | 20-22-28m/min |
| Installed power | 21KW380V50HZ |
| Pneumatic power | 0.7-0.9Mpa |
| Overall dimension | 9800*1200*1650mm |
Product Function
1) The feeding base and rack are fixed in one piece, which has stronger stability compared to extended suspension
2) The control console adopts an upgraded Homag style lifting arm, which is more sturdy compared to the aluminum alloy lifting arm
1) The feeding base and rack are fixed in one piece, which has stronger stability compared to extended suspension
2) The control console adopts an upgraded Homag style lifting arm, which is more sturdy compared to the aluminum alloy lifting arm
The motor is larger, the bearing capacity is greater, and the conveying is stable,
Equipped with a safety cover to avoid dust accumulation
1) Adopting the complete control of the Huichuan system, Huichuan frequency converter+PLC, and the complete HQD of the high-speed motor
2) 5 large pillars+11 small pillars+7 lifting boxes+dual motor control, faster speed and more stable running
1) Adopting the complete control of the Huichuan system, Huichuan frequency converter+PLC, and the complete HQD of the high-speed motor
2) 5 large pillars+11 small pillars+7 lifting boxes+dual motor control, faster speed and more stable running

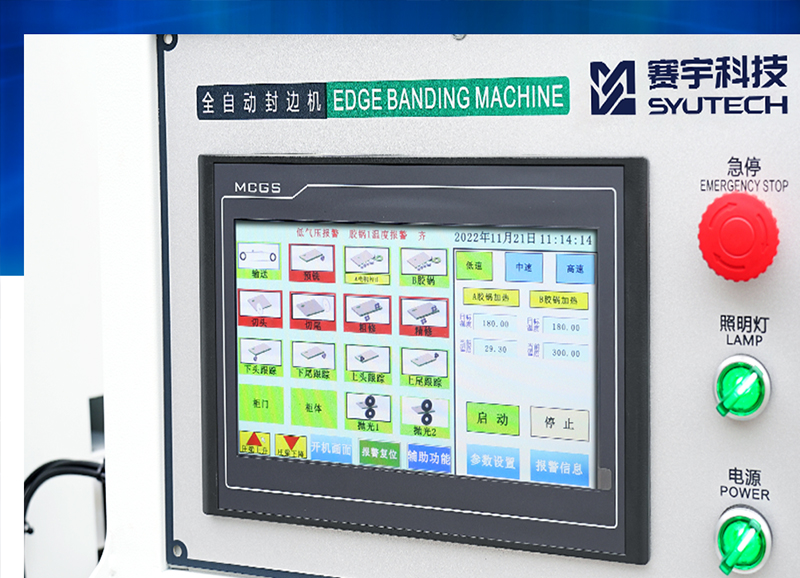

The Homag model has a large display screen, intelligent control, and computer operation,
More stable transmission and higher efficiency
1) Thickened bottom plate side plate with solid materials to ensure long-term stable operation and extend service life
2) The body is increased by 100mm, and the internal space is more spacious, making operation, adjustment, and cleaning more convenient
1) Thickened bottom plate side plate with solid materials to ensure long-term stable operation and extend service life
2) The body is increased by 100mm, and the internal space is more spacious, making operation, adjustment, and cleaning more convenient
The vertical plate of the rack adopts a processing process of integrated bending,
Plate edge sealing is more stable and accurate
Cabinet door and body edge sealing can be switched with one click, without the need for machine adjustment,
Easy to operate, delicate edge sealing, no excess adhesive residue
Cabinet door and body edge sealing can be switched with one click, without the need for machine adjustment,
Easy to operate, delicate edge sealing, no excess adhesive residue
Equipped with a fully enclosed heavy-duty body and 6 zigzag reinforced support legs, the overall appearance is high-end and atmospheric
Syutech Patent Convenient Polishing
Double polishing, removing dust and adhesive residue, keeping the board surface clean
Syutech Patent Convenient Polishing
Double polishing, removing dust and adhesive residue, keeping the board surface clean
